Newly Arrival High Frequency Flyback DC-DC Switching Power Supply Transformer For Black Household Appliances

Short Description:

Model NO. :SANHE-EE16

SANHE-EE16 is a high-voltage switching power supply transformer for small laser printers. It works in flyback mode and provides a working voltage of more than 2000V for the printer. With a special small multi-slot structure, SANHE-16-126 is wound by separating high and low pressure. It features small size, simple process and high production efficiency.


Product Detail

Product Tags

We now have many fantastic staff members customers superior at advertising, QC, and working with varieties of troublesome problem within the generation system for Newly Arrival High Frequency Flyback DC-DC Switching Power Supply Transformer For Black Household Appliances, We put sincere and health as the primary responsibility. We have a qualified international trade group which graduated from America. We’re your next business partner.
We now have many fantastic staff members customers superior at advertising, QC, and working with varieties of troublesome problem within the generation system for China Flyback Transformer and Switching Power Supply Transformer, With high quality, reasonable price, on-time delivery and customized & customized services to help customers achieve their goals successfully, our company has got praise in both domestic and foreign markets. Buyers are welcome to contact us.

PFC Inductor (3)

Introduction

SANHE-EE16 can provide the required stable high voltage for the output end by cooperating with the peripheral circuit. It absorbs the toner by the principle of high voltage electrostatic to combine with laser scanning to get text or graphics printed on the paper. It is widely used in office printers and desktop printing system.

Parameters

1.Voltage & Current Load
Output V1
Min(V) 2000
Type(V) 2400
Max(V) 2800
Min Load 100uA
Max Load 140uA
2.Operation Temp Range: -40℃ to 85℃
3.Input Voltage Range(AC)
Rated DC16V
Min DC12V
Max DC20V

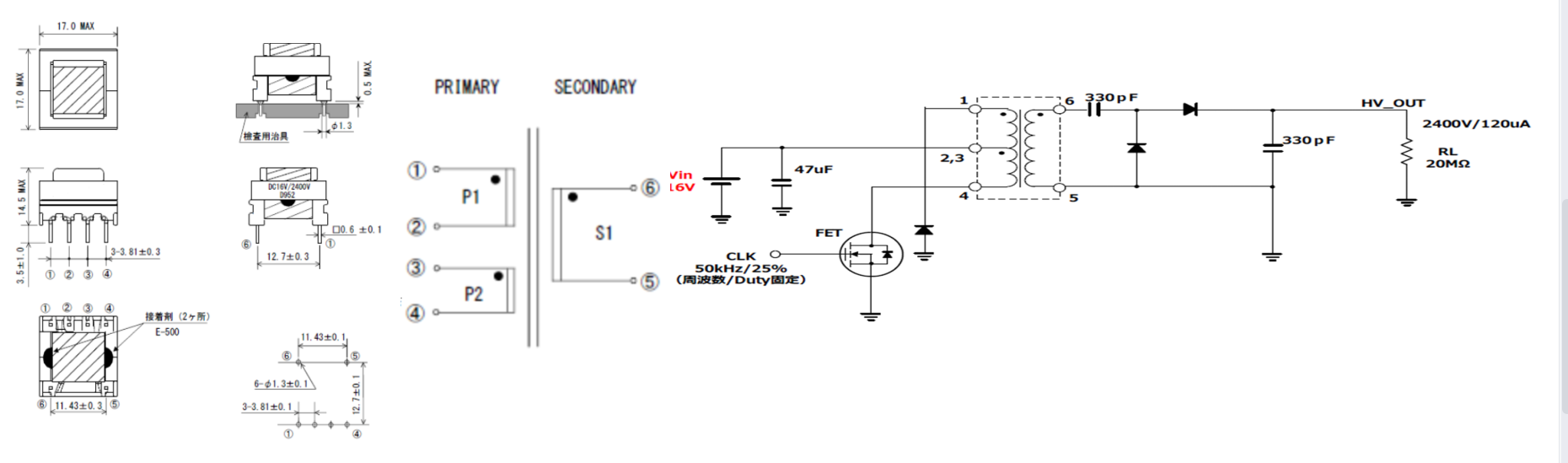

Dimensions:(Unit: mm)& Diagram

Dimensions21a

Features

1. Multi-slot EE16 miniaturized structure
2. Flyback working mode
3. Boost working mode
4. Fully automated winding process

Advantages

1. Miniaturized and low-height structural design
2. The structure is professionally designed to avoid inter-turn short circuit inside the high-voltage winding
3. Automated winding process improves production efficiency
4. Additional tape for protection prevents mechanical damage such as wire breakage
